MX-TH-4:Horizontal annealing furnace

Fourlines independently control the take-up andtake-offline and operateindependentlyIntelligent calculus tension control,angle compensation,accurate checking calculationIndependent convection vacuum c

product details

Features:

Fourlines independently control the take-up andtake-offline and operateindependently
Intelligent calculus tension control,angle compensation,accurate checking calculation
Independent convection vacuum cleaning solenoid valve control, the single path solenoid valve openswhen starting and automatically closes when stopping, saving time and labor
Spacing,take-up and scaling can be set for cable laying
Optional ① Ultrasonic cleaning makes the wire cleaner and startsand stops intelligently with paying off
②|mmersion type automatic lifting immersion spool, which rises whenstarting and automatically drops and stops when stopping
It has wireless shutdown,thatis,automatic shutdownalarm function after walking the line
Temperature and constant temperature functions canbe set for heating and drying aluminum alloy at outlei
Soft start control is adopted for both receiving and setting out

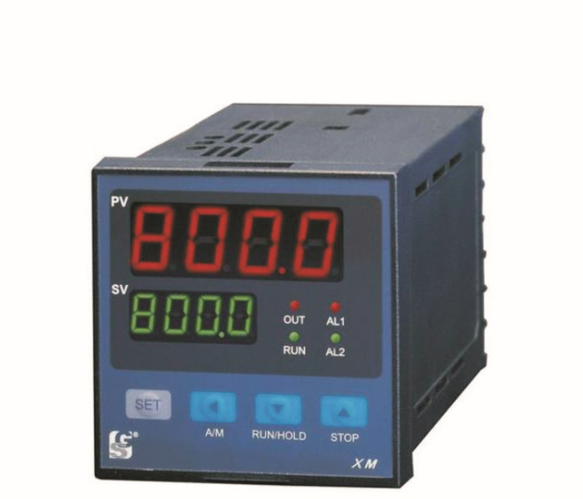

Each temperature is calculated automatically by at, and sectionaltemperature compensation can be set, with temperature difference of± 1 ℃
The length adopts laser meter counting function, which is accurate

Machine specification:

Annealing temperature Max:800℃

Annealing speed: 0~100 rpm

Tension range: 0.5~20g

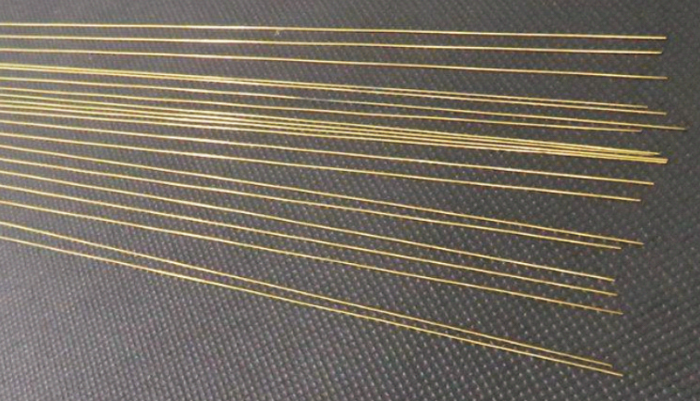

Annealed wire diameter: 0.010~0.050mm

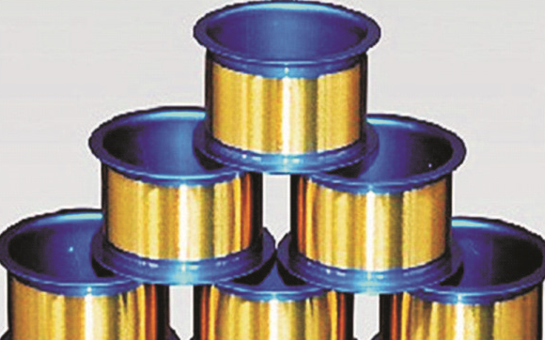

Spool diameter: 80mm or 100mm

Cable swing: 70mm

Number of stator monitoring points: 5 points

Total power: 10KW

Total power supply: 380V,50HZ
