Shenzhen Timesmx Technology Co., Ltd

Features:

1. Adopt high-power reduction frequency conversion motor and belt drive

2. Online meter counting function (laser meter counting)

3. Independent servo control is adopted for take-up and layout

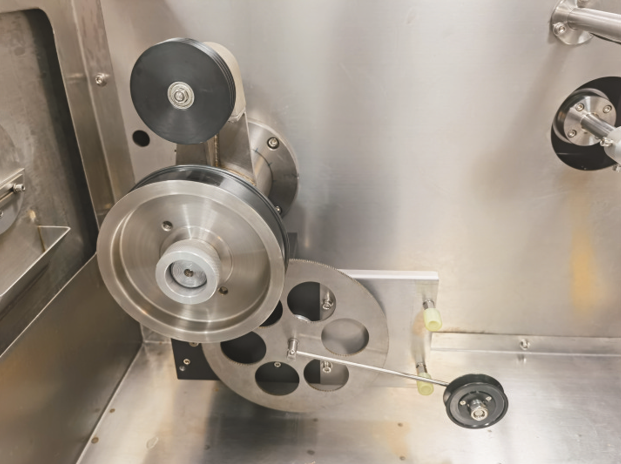

4. Optional servo paying off system, large wheel, double pulling small wheel,

constant tension control, automatic follow-up

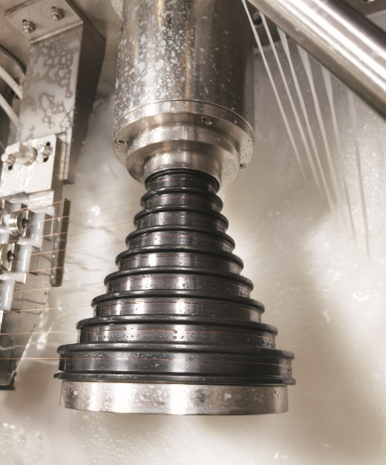

5. The unique fully immersed oil-water lubricating fluid reduces the thermal stress of the wire rod

and minimizes the friction with the tower wheel

6. Spray cooling and immersion cooling wire drawing can be selected

7. Can set different specifications, wire wheel diameter, automatic calculation

8. All shafts are made of stainless steel with special sealing design

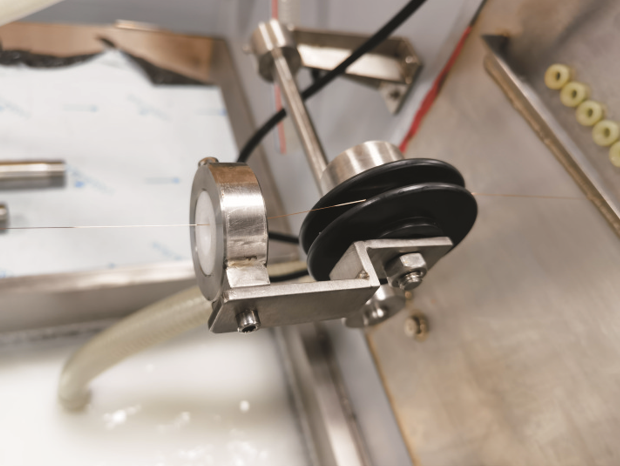

9. The front and rear tension positions of the die can be adjusted, so that the wire can work in all

positions, and the service life of the tower wheel can be improved

10. The layout shape can be set

11. Full computer control, which can realize the central monitoring of intelligent chemical plants

12. 100 groups of working mode, data storage, convenient and intuitive

Machine specification:

model: MX-19L

Power Supply: Three phase 380V 200V 50hz/60hz

Applicable materials: Gold,silver, coppers, stainless steel and other ultra-fine metal wires

Finished wire diameter:  1.5 - 0.1mm

Wire extension speed: Max 300m/min

Tension Range: 20g ~ 300g

Wire eye modulus: 19

Storage procedure: 100 groups

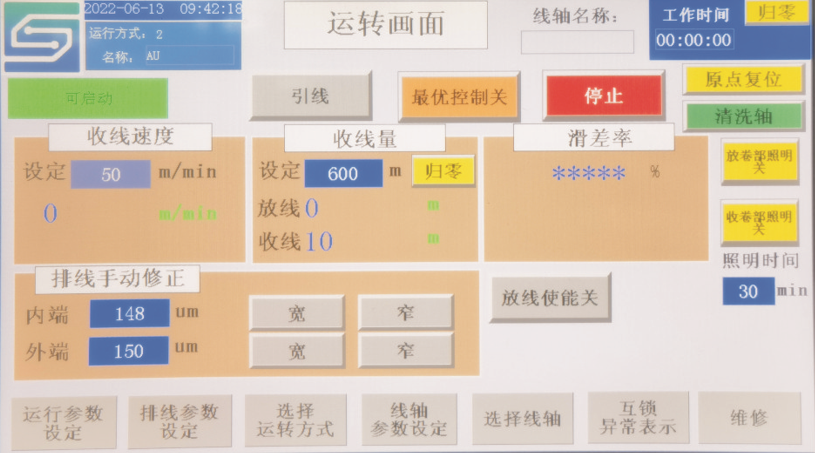

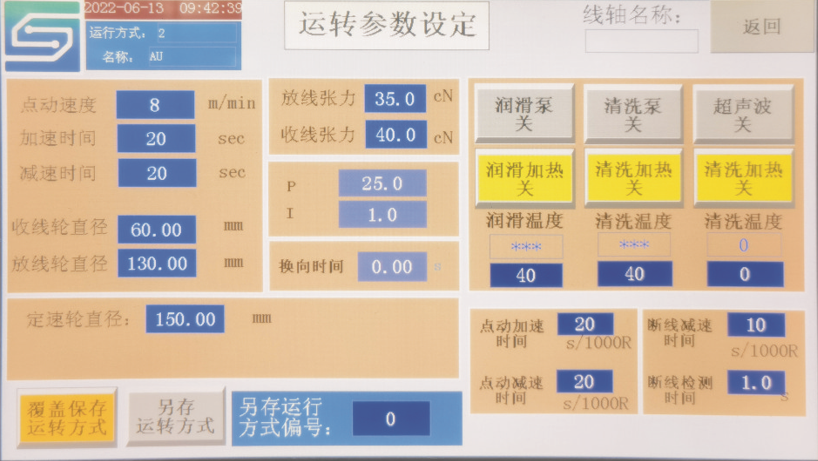

Control mode: Human machine Interface PLC soft program control

Control logic: Optimal control, closed loop control

Start stop mode: Soft start/stop, adjustable start/stop lifting speed

Meter counting method: Setting out/outgoing line meter, real-time display of actual setting out/outgoing line length
